Cabinet Door Instruction Manual
Table Of Contents
1)Tools/Supplies Needed for Assembly
2)Safety Warning
3)Step-by-step procedures for installation
4)Troubleshooting
5)Contact info for Technical Assistance
Tools/Supplies Needed for Assembly
Tools
#2 Phillips Screwdriver

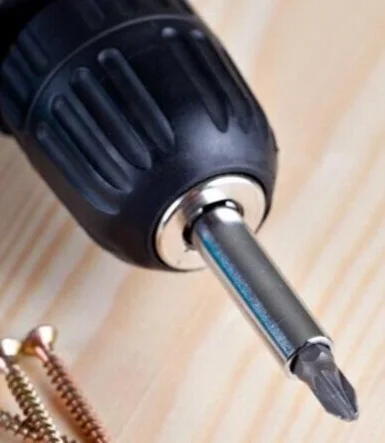

(Optional) Drill with #2 Philips bit
Supplies
· Hinge kit of your choice
· 4 Inch Cabinet Door Handle kit of your choice
Safety Warning
Be cautious when using tools, as miss use may result in harm to yourself or others. Careful of your fingers not to pinch them in between the door and the cabinet during installation. Do not throw the door or tools, as that may cause harm to yourself or others.
Step-by-step Procedures for Installation
Step 1: Install Hinge kit to the cabinet first using the pre-drilled hinge guide holes on the cabinet, using the provided screws. Tighten the screws and then back off just till they are loose. (Refer to the Hinge Manufacturer’s instructions, as some hinges may vary)
Step 2: Install the cabinet door to the hinge using the pre-drilled hinge guide holes on the cabinet door using the provided screws. (Refer to the Hinge Manufacturer’s instructions, as some hinges may vary)
Step 3: With the door now attached to the cabinet, align the door and then tighten the screws to lock it in place. (Refer to the Hinge Manufacturer’s instructions, as some hinges may vary)
Step 4: With the door now on its hinges in the open position, install the 4 inch Cabinet door handle using the screws provided with the door handle, by placing the handle on the outside and putting the screw through the pre-drilled holes for the handle, then screwing them into place with the #2 Phillips Screw Driver or drill with #2 Phillips bit. (Refer to the Door Handle Manufacturer’s instructions, as some hinges may vary)
Troubleshooting
If issues with the Hinge, refer to manufactures recommendations/troubleshooting guide
If issues with the Door Handle, refer to manufacturers recommendations/troubleshooting guide
Contact Info for Technical Assistance
Email: TechAssist@rhoadarmerindustries.com
Phone: (719)967-3209
